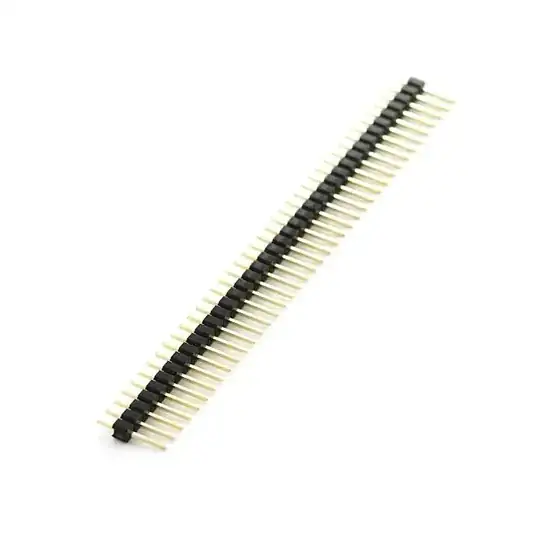

I want to put some breakaway headers into my Eagle CAD file. By that, I mean these:
Does Eagle come packaged with a library for these? If so, what is the part called, and which library is it in?
Asked
Active
Viewed 5.1k times
1 Answers
51
Eagle does indeed. The library you will want to look for is called pinhead. It has various 2.54mm (0.1") pitch pinheaders in it.
If it's not on the list, go to the Eagle control panel window, right click on Libraries and choose Use all. Then, in the schematic window, go to Library > Update all to update the libraries list.
Bojangles
- 996
- 12
- 18
-
2+1 on this for making me laugh, wish I could give +1 to whoever named that library. – BD at Rivenhill Aug 29 '12 at 21:48
-
3+1 for funny library names. Proteus ships with a library called ASSMANN (not for pinheads, though) :-) – Anindo Ghosh Apr 24 '13 at 18:42
-
1Is there a female equivalent of `pinhead`? – osvein Jun 03 '14 at 17:05
-
4The footprint is the same, just use the `pinhead` part and place a female header – Bojangles Jun 03 '14 at 19:05
-
3@Bojangles that doesn't give you the correct silkscreen (i.e. instructions for assembly). The right answer is `con-lsta.lbr`. @Spookbuster – Mark Jeronimus Dec 24 '16 at 11:59
-
pinhead only goes up to 2xN, not 3xN or 4xN :/ – tedder42 Dec 31 '17 at 01:22
