I am looking for a way to construct a 1 A, ±15 V split-supply. So far, I've seen a number of designs for split-supplies (http://tangentsoft.net/elec/vgrounds.html), but they are all low current (i.e. 100-300 mA).

My application involves several Mass Flow Controllers that each require a +15 V, 0V, and -15V connection. The data sheet says they draw 300+ mA when in operation (they contain a small heating element).

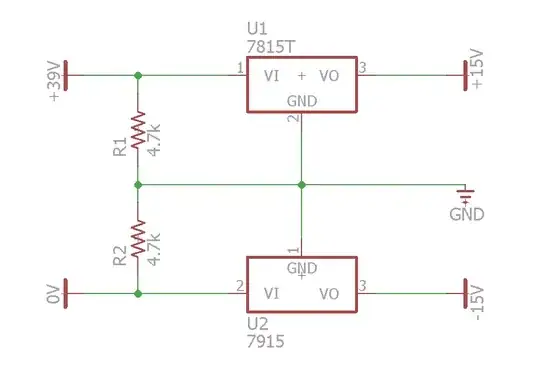

I attempted two separate solutions using an LM7815 and a LM7915 (one with and without the voltage divider), but they did not work.

enter image description here

Can someone point me in the right direction of an appropriate circuit?

Michael Molter
  • 430
  • 2
  • 10

2 Answers2

1

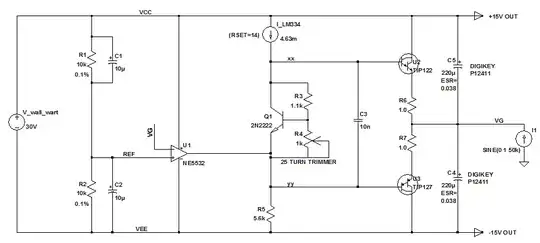

While I am yet to find a satisfactory answer to my question--I'm still digging--I found the attached circuit on Reddit, and plan on trying it out.

http://www.reddit.com/r/AskElectronics/comments/16owyj/heres_a_rail_splitter_circuit_30v_in_15v_out_aka/

enter image description here

I'm cautious about using a buck converter, because (1) I haven't worked with them before, and (2) having a plus/minus buck converter set up is a very complex place to start.

Michael Molter
  • 430
  • 2
  • 10
0

If the load draws 300mA you would be wasting 19.5-15*0.3=1.35Watt on each power supply.

I would suggest using buck or buck boost converters instead. Have a look at this app note on how to configure a buck converter for negative voltages.

I think the LM2576 datasheets also have some information on negative configurations.

Dejvid_no1
  • 3,568
  • 17
  • 24
