I have two resistors which need to be replaced. I tried to determine the value, but it can't make sense of these black bands: Resistors in question For reference the bands are:

  • brown - silver - green - brown - black
  • brown - silver - red - brown - black

Since a silver line can only be part of the multiplier, that means the black line on the right has to be the tolerance. Black can not be used for a tolerance from what I've read.

Is this black line a tolerance value or something else?

tehwalris
  • 746
  • 2
  • 8
  • 16

1 Answers1

4

I don't think I've ever seen a resistor value with a leading zero (usually those super-low values are marked with the value in numerals), but that's what those appear to be. 0.012\$\Omega\$ 1% and 0.015\$\Omega\$ 1% are what I see (reading from right to left, as Olin suggests, but I think the silver is a multiplier and the brown is the tolerance).

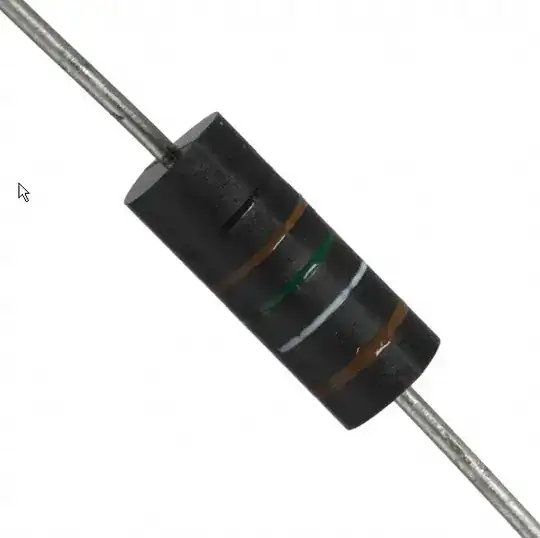

Here's a 0.015\$\Omega\$ 1% resistor (courtesy Digikey):

enter image description here

Spehro Pefhany
  • 376,485
  • 21
  • 320
  • 842
  • 2
    I was initially using an app to determine the values and it wouldn't accept the leading black/zero. That's what got me confused. – tehwalris May 19 '15 at 17:43
