How to design a 4 input XNOR gate?

Question

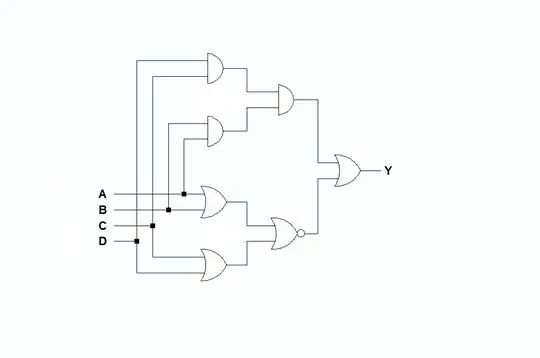

I want make this 3 input device 4 input legged. Any suggestions?

You can make it using an inverting 4-to-16 decoder (one where the outputs are active LOW) and a 4-input AND gate... — Majenko, Mar 15 '15 at 11:48
@Majenko: If one and only one input high makes a high output, then a 4-to-16 decoder with active low outputs would have to be followed up with a four input NAND, yes? — EM Fields, Mar 15 '15 at 17:45

EM Fields · Accepted Answer · 2015-03-15T11:48:49.217

0

If all of the inputs are the same (all high or all low) the output will go high, otherwise the output will g0 low.

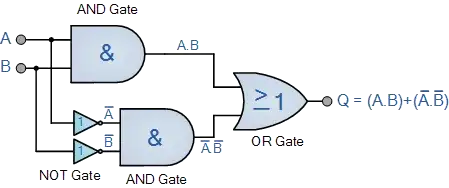

enter image description here

edited Mar 15 '15 at 11:48

answered Mar 15 '15 at 11:08

EM Fields

1

That's correct for the "other" type of XNOR gate, but the one pictured has "=1" in it, so it's a "one and only one input HIGH" style XNOR gate. – Majenko Mar 15 '15 at 11:46
@Majenko: AARGHHHH!!! – EM Fields Mar 15 '15 at 11:57
That's the problem with XNOR / XOR with more than 2 inputs - what does it really mean? – Majenko Mar 15 '15 at 12:06
I was confused, so I went looking for clarification and found [this.](http://www.nxp.com/documents/data_sheet/74LVC1G386.pdf) They use =1 also, but their truth table shows that when A is low, B,C, and Y make an XOR, but when A is high, B,C, and Y make an XNOR, so that: "one and only one input High" rule doesn't seem to be hard and fast. :) – EM Fields Mar 15 '15 at 12:39
We had a big long discussion about it all here not so long back: http://electronics.stackexchange.com/questions/93713/how-is-an-xor-with-more-than-2-inputs-supposed-to-work/93720#93720 – Majenko Mar 15 '15 at 12:40
