I have bought some ATSAM4E8C chips in LQFP 100 package. The datasheet shows that the IC should have a dot indicating the first pin, but mine have two dots. One larger in the corner, and a smaller white dot diagonally. The upper left side of the name painted on the chip is not aligned with any of them. Where should the first pin be located?

user17152
  • 327
  • 1
  • 7

3 Answers3

15

If you have multiple circular indents on the package, and they are all the exact same size and shape, then they are not the identifying indents. In that case the identifying dot will be printed.

In general, though, you have 2 types of indent in the package. Large flat ones are part of the moulding process and are to be ignored. The identifying one is usually smaller and deeper - often with a more concave profile to it.

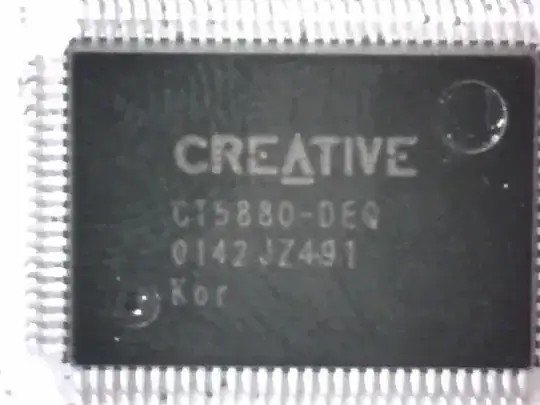

For instance, take this chip from Creative:

enter image description here

The larger dot in the upper right is a moulding artefact - the one in the lower left is smaller, and they have even gone to the trouble to accent it by drilling a further hole in it.

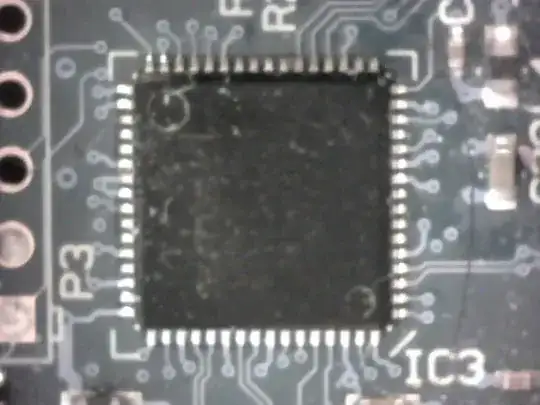

This one from ITE is more tricky:

enter image description here

Both the dots are the same size and the same depth - however the lower left one has a small bar across it - not easily visible to the naked eye - which highlights it as the identifying corner.

This one is more akin to the Atmel:

enter image description here

You can see the two dots are different sizes. The identifying one is the smaller one of the two. The larger is the moulding artefact.

So in summary:

  • Large and shallow = not it.
  • Small and deep, concave, or otherwise not just plain large and shallow = it.
Majenko
  • 55,955
  • 9
  • 105
  • 187
  • Sometimes what I do is see the pinout of the part in the data sheet, noting the orientation wrt the printing on the package, and infer the pin number from the orientation. Might be error prone though. – Vaibhav Garg Jan 13 '15 at 09:09
  • Not always 100% foolproof, and sometimes they don't show the printing in the datasheet. It's a good guide though, especially when taken with the other markers. – Majenko Jan 13 '15 at 10:37
  • Exactly what I implied, this is at best a supporting evidence. Wonder if you could give this a mention in an edit to your answer with the stated caveats? – Vaibhav Garg Jan 15 '15 at 10:10
1

Wow what poor packaging design. Looking at the datasheet revealed nothing... But looking at the picture on their website I see the two circles you're talking about. I would choose the smaller one that is more concave not the larger flat one.

That's more inline with the industry uses for pin marking.

Some Hardware Guy
  • 15,815
  • 1
  • 31
  • 44
0

The first pin of an LQFP package is in the corner. But to be sure, see if the datasheet offers other information. You could also add a link to the datasheet into your question.

A white, or other color, dot indicates a post processing step: something that has been done to the chip after markup. For example, it may have been programmed (if it has nonvolatile memory), fused (to allow other product variants) or retested.

Looking at the picture at http://www.atmel.com/devices/SAM4E8C.aspx?tab=documents, the small dot on the left is the pin 1 marker, the larger circular flat area is just for mechanical handling of the package.

PkP
  • 7,567
  • 2
  • 23
  • 42
