I've got a USB device that requires 12 watts to charge.

My laptop appears to output less that that.

My question is: Is it possible to step-up the output of a laptop USB port to 12 watts?

hawkeye
  • 627
  • 1
  • 5
  • 13
  • 17
    What's with the downvotes? The question shows a lack of knowledge of basic physics, but I thought this site was about collecting knowledge and helping people learn. This is a prime opportunity to explain some basic facts about physics and electronics. – JRE Oct 10 '14 at 13:29
  • Short answer, no. You could use multiple USB port on the Laptop to get the result though. I have seen this done before in some USB 3G wireless modems. – tman Oct 10 '14 at 14:06
  • 12
    Close votes are innapropriate. Op might be a novice, but **This is an EE question**. – Passerby Oct 10 '14 at 15:28
  • 1
    @JRE & Passerby: Presumably voted for by those who were born knowing everything already... – John U Oct 10 '14 at 15:43
  • 1
    @JRE: I suspect the downvotes are because it doesn't require any electronics knowledge to know this can't be done, just very basic high school physics. – Olin Lathrop Oct 10 '14 at 16:22
  • 1
    You could get 12 VOLTS out through a switching power supply, but you still can't exceed 2.5 WATTS continuous, meaning that the current will be lower. However, since you're charging a USB device, I'm pretty sure you don't want 12V! Better stick with 5V. USB charging is a separate section of the official spec that allows for higher currents than normal. – AaronD Oct 10 '14 at 17:14
  • 1
    @olin highschool has changed much since your highschool days. High school physics? They are lucky if they get a basic chem class in high school. Hell, I only saw something close to ohms law because my elective was electronics shop. "High school physics" isn't standard core any more. – Passerby Oct 10 '14 at 19:16
  • Actually, yes it **is** possible, but only if your Laptop supports USB 3.1 and/or the [USB Power Delivery Specification](http://en.wikipedia.org/wiki/USB#PD), [which can deliver up to 100 W](http://en.wikipedia.org/wiki/USB#Power) of power. – Ajedi32 Oct 10 '14 at 19:37
  • support for USB 3.1 is unrelated to the USB PD spec. A USB 2.0 port can also be made PD-compliant. – jiggunjer Apr 20 '15 at 18:14

6 Answers6

28

No. This is basic physics. There is no free lunch (or energy).

If the laptop only puts out 500 mA at 5 V, for example, then you get 2.5 W. You could convert this to a different combination of voltage and current, but the result can't on average exceed the 2.5 W you put in (It is possible to get higher power out for short durations, but that's clearly not what you are asking about. The average out still can't exceed the average in.). Since no conversion will be 100% efficient, you will actually get a little less power out, with the remainder getting dissipated as heat in the converter.

For example, let's say you can make a switching power supply that is 90% efficient. That means with 2.5 W in, you get 2.25 W out at some other voltage and current combination. The remaining 250 mW will heat the switching power supply. You could get, for example, 10 V at 225 mA, 24 V at 94 mA, 2 V at 1.13 A, etc.

Olin Lathrop
  • 310,974
  • 36
  • 428
  • 915
  • 3
    Agreed! You could use multiple USB port on the Laptop to get the result though. I have seen this done before in some USB 3G wireless modems. – tman Oct 10 '14 at 14:02
  • Usb y cables are common for powering external 2.5mm harddrive cases with power hungry harddrives. – Passerby Oct 10 '14 at 15:21
  • 9
    And I'm shocked. You calmly explained without any snark or condescesion... 1+ – Passerby Oct 10 '14 at 15:29
  • Your physics is (obviously) correct, but the USB standard has moved on... http://en.wikipedia.org/wiki/USB#3.0 – markt Oct 10 '14 at 21:44
  • 4
    @markt: Yes the USB standard has moved on, but apparently left the OP's laptop behind. – Olin Lathrop Oct 10 '14 at 22:12
  • 1
    That's a helpful application of Ohm's law. I wasn't sure how to apply it in this scenario. – hawkeye Oct 11 '14 at 02:59
  • One more question Olin - is it possible my laptop simply lacks the drivers to output the higher power level? – hawkeye Oct 11 '14 at 03:01
  • @Haw: The high power USB charging standard is new enough, and laptops don't often provide it anyway, so it's quite likely your laptop only provides the 500 mA allowed in the USB 2 spec. – Olin Lathrop Oct 11 '14 at 13:22
  • What about connecting the USB power out to power coming from the power supply? Surely there must be _some_ way to do this, though it may be complicated or not worth doing... – Michael Gazonda Oct 11 '14 at 21:44
  • @MichaelGazonda Assuming there's a way of using the main power supply to connect to the USB supply, why would you want to connect it anyway? Why not use the main supply directly to charge the device? – Vaibhav Garg Oct 14 '14 at 03:33
8

As a practical thing, no, you cannot. Any device that you could build to do the job would cost more than it is worth - just get a separate charger.

Olin is incorrect in stating that you can't get more power out than power in. In actual fact, you can get more power out than power in. You just can't get it continuosly. The thing you CANNOT do is get more energy out than you put in.

This is in fact done all the time in charging a battery. You charge the battery with a low current (low power) and the battery can later deliver a much higher current (more power.)

Power is voltage * current.

Energy is voltage * current * time.

5V*.5A*1Second is 2.5Joules of energy. That is 2.5Watts for 1 Second

5V*2.4A*0.2083Seconds is also 2.5 Joules of energy. That is 12Watts for 0.2083 Seconds.

So, you could charge a large capacitor from your USB port until it reaches (very nearly) 5Volts. Then, you would let the device charge itself from the capacitor.
The capacitor charges slowly through the USB port (drawing only 2.5 watts, but for a relatively long time.) When you then connect the charger to the capacitor, it can then discharge much faster (delivering more power, but for a very short time.)

Switch back and forth (allowing propert amounts of time for the charge and discharge cycles) and you could deliver enough energy to charge your device - but it would take at least (12/2.5=4.8) 5 times longer to charge than usual.

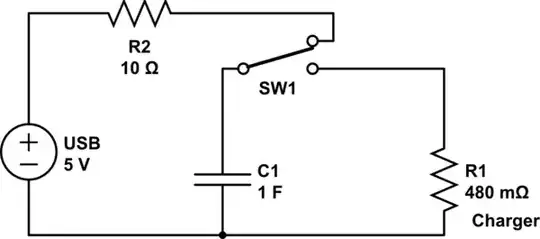

The diagramm shows what I'm talking about. If you switch the capacitor to the USB, it will charge at (maximum)2.5Watt. When you switch the capacitor to the load, it will discharge at a much higher rate - the capacitor calculator that I used (not the one in the simulator) says that R1 will discharge at a maximum of 52Watts - your charger would likely not draw that much, since it limits the charging current..

I doubt that your charger would like pulses, and I doubt that it would be worth your while to find out - a 1F capacitor costs over 50US dollars. Still, it could be done if there were some really serious need to do it.

schematic

simulate this circuit – Schematic created using CircuitLab

JRE
  • 67,678
  • 8
  • 104
  • 179
  • 6
    It is quite clear the OP is asking how to get 12 W out with less in *continuously*. Yes, you can get more power out than in *for short durations* (switching power supplies inherently work on this principle), but that's symantics that obfuscates the real message in this context. Nonetheless, I have updated my answer to include the weasel-words to address the confusion you inserted into the argument. Your answer is basically a very slowly switching power supply, but it still can't put out more average power than in. – Olin Lathrop Oct 10 '14 at 13:54
  • Thanks for the refresher on Ohm's law. I was fairly rusty on it, having not looked at it for 20 years. This is a very creative solution. – hawkeye Oct 11 '14 at 02:57
2

The USB 3.0 spec allows a special battery charging mode that increases the output to 1.5 A, while not allowing data transfer during that time. With this option, you could use a USB Y-adapter to connect to 2 separate USB ports. As long as your device is capable of making the request, this could supply up to 15W total.

The USB 3.1 spec adds power profiles allowing up to 5A across 12V or 20V, giving you significantly more than what you need. However this is a fairly new spec, and not all devices will support these power profiles.

Thebluefish
  • 133
  • 8
  • According to wikipedia it is the BC1.2 spec that allows charging at 1.5A WITH concurrent data (high speed). The power delivery 1.0 spec add power profiles, NOT the USB 3.1 spec. This implies a USB 2.0 port could also implement the PD1.0 spec. – jiggunjer Apr 20 '15 at 18:34
1

As a concise answer, no. A USB port that sticks to USB specs of 500mA output max provides 5V * 0.5A = 2.5 Watts. With real world efficency losses (nominally 80~90% efficent), you can provide a Higher Voltage with Less Current, or a Lower Voltage with More Current, but you can't create powerout of nowhere. The output power will always be less than the input power (unless we talk about theoretically perfect systems, then the output will be equal to input power).

That said, many USB ports don't adhear to a strict 500mA output. 12W is roughly 2.35A at 5V, so basically a Tablet charger. Apple computers, with special drivers for the iphone and ipad, will provide that, for the ipad, but that is not to USB spec. Other computers vary.

Passerby
  • 72,580
  • 7
  • 90
  • 202
  • 1
    This is a really helpful answer. – hawkeye Oct 11 '14 at 02:56
  • 1
    12 watts from a host computer USB port does not violate any USB spec. This is not some new change to the USB spec either. USB-BC specs were published in 2010. In 2007 China required new phones to use USB for charging, the EU adopted similar requirements in 2009. By 2012 the USB-PD spec was published, USB-BC had been revised to v1.2, Apple introduced the Lightning connector, USB type-C was being developed, and USB standard compliant computer ports and power bricks that provided 7.5 watts or more power were available. The ubiquitous 12 watt USB charger became ubiquitous somewhere about 2015 – MacGuffin Feb 14 '21 at 06:09
  • @mac none of which was common when op asked the question 7 years ago, 2014, and op specifically says their laptop output is less than 12 Watts. Thanks for the down vote tho – Passerby Feb 14 '21 at 21:44
  • " none of which was common when op asked the question 7 years ago " I'm not arguing on if it was common or not. My point is that 12 watt power was part of the USB spec well before 2014. It was adopted as part of the USB spec in 2010. By 2012 Apple and other electronics manufacturers were selling products that met this spec in large numbers to the general public. That may or may not be considered "common" in 2014 but the spec for 12 watt power delivery by USB-BC and USB-PD existed then, it was well known enough that people were asking if their hardware could meet this then 4 year old spec. – MacGuffin Feb 14 '21 at 23:00
1

While I agree with pretty much everything Olin has said, in this particular case he may not be entirely correct.

I finally went and checked Wikipedia because I had a vague memory that USB3 might be able to deliver higher power; check out the claimed power delivery capabilities of 3.0 and 3.1 in the last para of each.

markt
  • 4,936
  • 2
  • 15
  • 13
0

Since most of the laptops comes with more USB ports, you may get it with a Y cable like this:

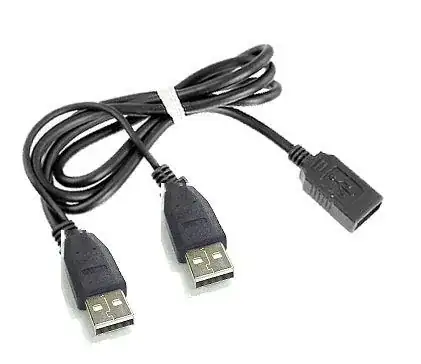

enter image description here

This doesn't allow a single port to increase its output power, but allows you to split it over two of them.

I guess that you may also use more cables to distribute the power over more ports, although I'm not sure to recommend that.

  • Still nowhere near 12W though.... and that poor laptop battery! – RBerteig Oct 10 '14 at 21:16
  • This is a very practical answer – hawkeye Oct 11 '14 at 02:55
  • The best recommendation one can give with these USB Y-cables is when they are seen they should be chopped to pieces and discarded. These cables violate the USB spec and are a fire hazard since they can short out power supplies in computers. There was a time when these were quite common but they were never allowed by the USB specifications. If a device needed more power than one USB port could provide then the proper means to address this was to provide power from a wall wart power supply or something. USB 2.0 allows for 7.5 watts, and therefore two would give 15 watts. But still a bad idea – MacGuffin Feb 14 '21 at 06:24
