Google search results imply TO-220FP to be full-pack case.
Wikipedia says that TO-220F is full-pack case.
Farnell categorizes TO-220F and TO-22FP differently.

I'm confused. What is the difference between these two TO-220 case versions?

hkBattousai
  • 13,913
  • 31
  • 114
  • 190
  • Did you check the datasheets for mechanical and thermal specification? – Vladimir Cravero Sep 09 '14 at 09:20
  • I have check datasheets of several components. They appear to be same. Both F and FP are isolated. Datasheets don't mention detailed information. – hkBattousai Sep 09 '14 at 09:23
  • Package codes often vary between manufacturers. You will have to study the datasheet of the parts you are interested in to find what that code means to that manufacturer. – Peter Bennett Sep 09 '14 at 16:03

1 Answers1

9

The STP12PF06 datasheet (first google hit for 'to-220p to-220fp') shows that the f version has a metal tab, and the fp version has only plastic on the outside (at least at the front, but I assume also on the back).

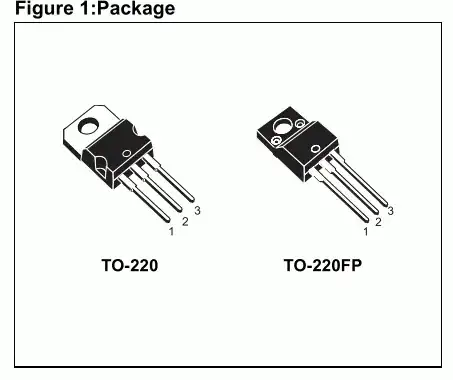

enter image description here

This makes it easier to mount the package galvanically isolated, but the plastic layer seems to add some thermal resistance: the rthj-case of the fp version is almost 3 C/W higher.

enter image description here

Wouter van Ooijen
  • 48,407
  • 1
  • 63
  • 136
  • 4
    I don't see an F version of [STP12PF06](http://www.mouser.com/catalog/specsheets/stmicroelectronics_cd00050425.pdf) in the datasheet. – hkBattousai Sep 09 '14 at 10:19
