I am researching about SMPS, specifically AC/DC flyback converters.

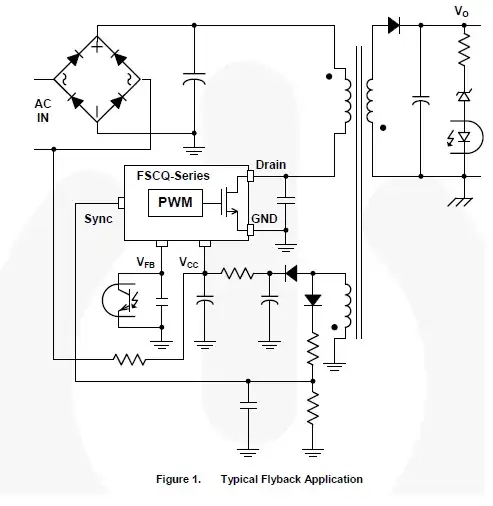

In the datasheet for the switching controller (Fairchild FSCQ0765), it refers to an auxiliary winding. What is that? All the current transformers I've looked at only have a primary and secondary winding.

enter image description here

tgun926
  • 2,726
  • 12
  • 36
  • 59

1 Answers1

3

The auxiliary winding is the one that is not a primary or secondary.

In this case it provides power and a timing signal (synchronization) to the controller- since it's a quasi-resonant controller it needs to be in tune with the transformer.

Spehro Pefhany
  • 376,485
  • 21
  • 320
  • 842
  • What kind of transformer provides an auxiliary winding? I have looked at isolation transformers, as well as high frequency current transformers, and both these only have a primary and secondary coil. – tgun926 Jul 06 '14 at 02:16
  • Usually these are custom transformers, not off-the-shelf, unless someone happens to offer a transformer for this particular chip. – Spehro Pefhany Jul 06 '14 at 02:20
  • Most of the flyback controllers I've looked at have some sort of auxiliary winding. Does this mean homebrew SMPS's are almost impossible to make? – tgun926 Jul 06 '14 at 02:34
  • You can wind your own transformer. The number of turns is usually reasonable, and you can fake the gapping with a spacer at the cost of a bit more EMI. Small quantities are more of a problem than one-offs IME. – Spehro Pefhany Jul 06 '14 at 02:41
  • 1
    @tgun926 [Here's a thread, which deals with finding transformers for SMPS.](http://electronics.stackexchange.com/a/71852/7036) In general, it's safe to assume that off-the-shelf transformers for SMPS are... scarce. – Nick Alexeev Jul 06 '14 at 03:57
