Superposition principle: Dependent sources treated as independent sources

Question

Since I began studying, I was taught that when analysing a circuit using multiple sources, independent sources could be turned off, meaning that I could transform a voltage source into a short, and a current source into an open circuit and analyze the circuit by how each individual source acts on it.

However, regarding dependent sources, every electric circuits book I've read says the same thing:

"Dependent sources should never turn off when using the superposition principle analysis, they should be left intact since they are controlled by variables somewhere in the circuit".

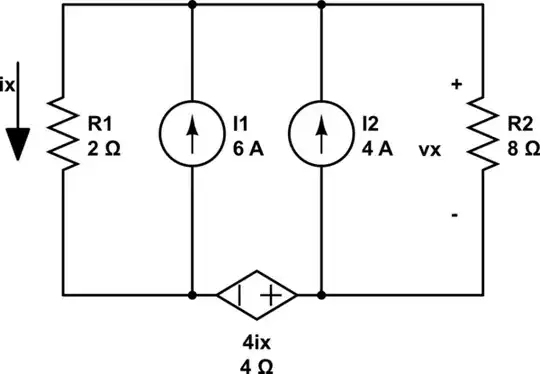

However recently I've noticed that I can get the same results if I treat the dependent source as a regular independent source. Ive simulated this, compared to the end-of-chapter problem solutions and it all turns out the same. Take the following problem from Alexander/Sadiku's Book as an example, which states:

"Find Vx using the superposition principle"

^{simulate this circuit – Schematic created using CircuitLab}

Normally I would leave the dependent source on, turn off the 4A current source and find Vx1, then I would turn off the 6A current source and find Vx2, add them up and find Vx.

However, if I treat the dependent current source as an independent current source, I get the same results, Here's the procedure I followed:

Turning off both current sources:

^{simulate this circuit}

Finding Vx using Ohm's law results in:

$$Vx1 = -(4Ix / 10) * 8$$ $$Vx1 = -3.2Ix$$

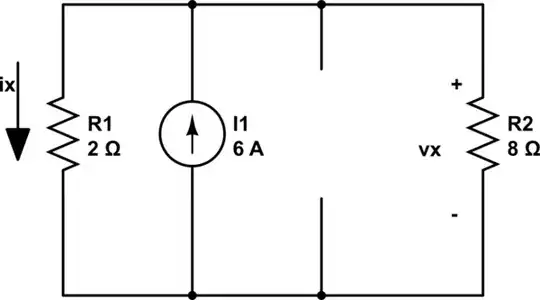

Now I shut down all sources (including the dependent voltage source like if it were an independent source) and leave the 6A source on:

^{simulate this circuit}

Using the current divider formula and multiplying by 8 I get Vx2

so:

$$Vx2 = (2 / 10) * 6 * 8 = 9.6V$$

Finally, I turn off all sources but the 4A current source:

^{simulate this circuit}

Using the same procedure as above, by current divider I find Vx3:

$$Vx3 = (2 / 10) * 4 * 8 = 6.4V$$

Finally, the total voltage Vx is the sum of each individual voltage Vx (Vx1, Vx2, Vx3):

$$Vx = Vx1 + Vx2 + Vx3 = -3.2Ix + 9.6 + 6.4$$

I can find Ix by Kirchhoff's Current Law, the currents in the top node of the circuit are:

$$Ix + Vx/8 = 6 + 4$$

Solving for Ix

$$Ix = 6 + 4 - Vx/8$$

Using the above equation to eliminate Ix from Vx:

$$Vx = -3.2(6 + 4 - Vx / 8) + 9.6 + 6.4$$

Solving for Vx:

$$Vx = -26.667V$$

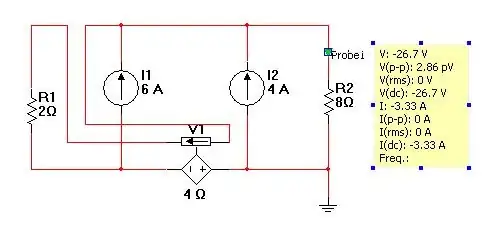

And this is the simulation I made on Multisim:

So my question is: What is going on? Why is it "prohibited" to treat dependent sources this way when the results are the same?

Answer 1

Superposition of dependent sources isn't prohibited: Superposition of Dependent Sources is Valid in Circuit Analysis.

The author has investigated the presentation of superposition in circuits texts by surveying twenty introductory books on circuit analysis. Fourteen explicitly state that if a dependent source is present, it is never deactivated and must remain active (unaltered) during the superposition process. The remaining six specifically refer to the sources as being independent in stating the principle of superposition. Three of these present an example circuit containing a dependent source which is never deactivated. The other three do not present an example in which dependent sources are present. From this limited survey, it is clear that circuits texts either state or imply that superposition of dependent sources is not allowed. The author contends that this is a misconception.

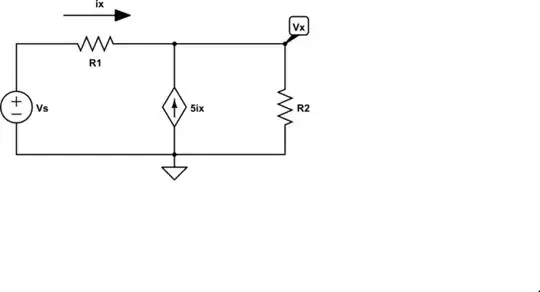

As a simple example using superposition of a dependent source consider the following circuit:

^{simulate this circuit – Schematic created using CircuitLab}

By superposition, we can write the equation for \$V_x\$ by inspection:

$$V_x = V_s\frac{R_2}{R_1 + R_2} + 5i_x R_1|| R_2 $$

We also have, by inspection

$$i_x = \frac{V_s - V_x}{R_1} $$

Thus

$$V_x = V_s\frac{R_2}{R_1 + R_2} + 5 \frac{V_s - V_x}{R_1}R_1|| R_2$$

It's just algebra from here. No need for node equations or mesh equations.

The key to successfully using superposition with dependent sources is the following:

Do not attempt to solve for a numeric answer until the superposition sum has been written.

Answer 2

The solution lies to the answer of the question, " why we want superposition theorem". the answer is to do the analysis easily. Now if you want to turn off the dependent source turn it off, no problem, and if you find it easy to leave it on, then that is also fine, since , the linearity is followed by the elements and voltage and current function.

Answer 3

The answer is simple: you are making a mistake.

When only the dependent source is on you get \$V_x=0\$. Let's add the voltages on the loop, starting on the low side of \$R_1\$ and going counter clockwise: $$4i_x-R_2i_x-R_1i_x=0 \rightarrow i_x(4-8-2)=-6i_x=0 \rightarrow i_x=0 \rightarrow V_x=-i_xR_2=0$$

You can actually find networks where you can treat dependent sources as independent, imagine a net where a dependent source is a controlled voltage source with only one terminal connected, it's clear that it will not affect the circuit in any way so you can treat it pretty much how you want.

All in all the fact that such examples exist does not mean that such a method is general.

Think of a simple common source amplifier:

^{simulate this circuit – Schematic created using CircuitLab}

If you have to find \$v_d\$ as a function of \$v_{in}\$ and use your method you can easily see that you'll find out that \$v_d=0\$ no matter what \$v_{gs}\$ is, that is wrong.
