Please consider the following image:

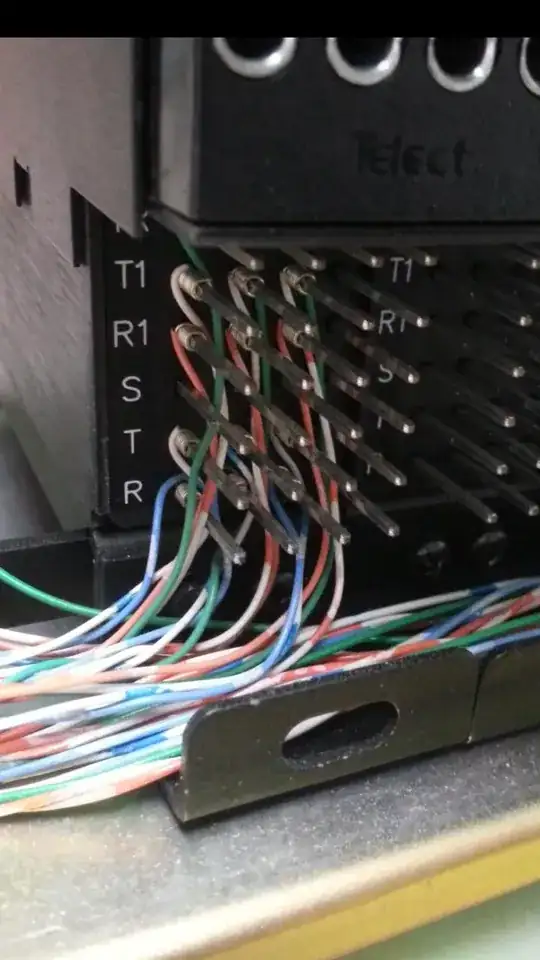

enter image description here

I randomly wandered into the telecom room at work a while ago, and I noticed these strange looking terminals. How do you terminate a wire like this? Is there a certain tool to create the coil around the terminal? What do I call this sort of terminal?

Ace
  • 163
  • 3

1 Answers1

10

This is called Wire Wrap. The low resistance connection is made by cold-welding the wire to the pin at the corners of the pin.

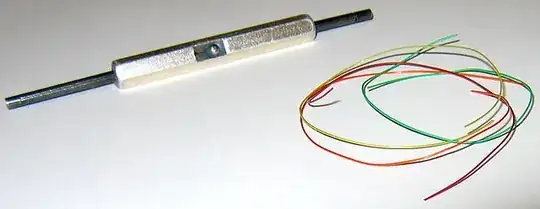

There is a special tool for making wire wrap connections.

enter image description here

Here's a video about wire wrap. [Nothing special about it. This is the first one I've come across.]
