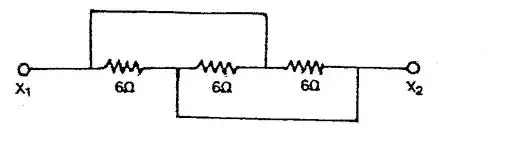

Are these resistors in parallel? A question is asked to find the equivalent resistance between X1 and X2; to my knowledge, these resistors are like parallel connections. But the choices are given as:
- A. 2 Ohms
- B. 4 Ohms
- C. 8 Ohms
- D. 12 Ohms
Asked
Active
Viewed 2,208 times
3 Answers
3

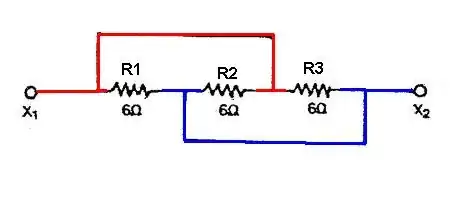

Redraw the circuit so that it makes more sense is the main clue or even colour code all the nodes: -
Count the nodes. How many are there? Does this tell you how the resistors are connected? It should.
Andy aka
- 434,556
- 28
- 351
- 777
3

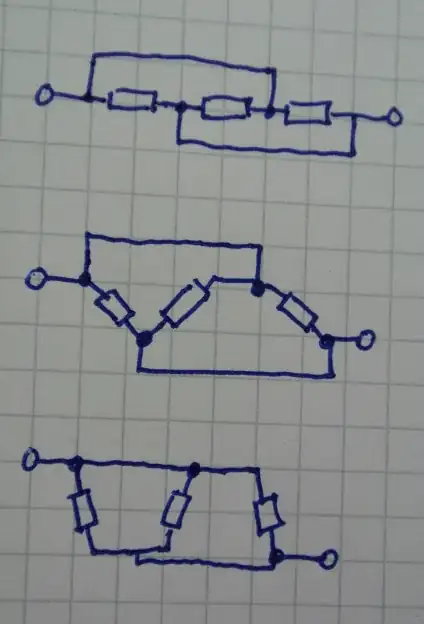

is these resistors are in parallel ?
Hmm ...
RedGrittyBrick
- 14,602
- 5
- 37
- 77
-
I see what you're doing visually, but I think this answer could be improved with a little bit of text. :) – JYelton Feb 22 '14 at 18:02
-
It's like a peek into the workings of an EE's mind. Very good. – Spehro Pefhany Feb 22 '14 at 18:14
-1
The right answer is 2 ohms. The equation can be found at parallel resistors
An instructor put this on test when I was a student, but not multiple choice, just pen and paper and slide rule. This was before calculators were invented.
user3012727
- 21
- 1
- 3
-
A good answer would address the schematic and explain how to redraw it or re-imagine it so that it's obvious how components are connected. Providing the eventual final answer with a link to parallel calculations, I don't think is as helpful. Finally, the anecdotal portion about your past is completely superfluous. – JYelton Feb 22 '14 at 18:06
